rad/Zintercom
1
0
Fork 0
mirror of https://github.com/Utyff/Zintercom.git synced 2026-01-12 09:17:41 +03:00
Code Issues Projects Releases Wiki Activity
Files
c5780a90072681e069552aa4da5222cbf8688a6d

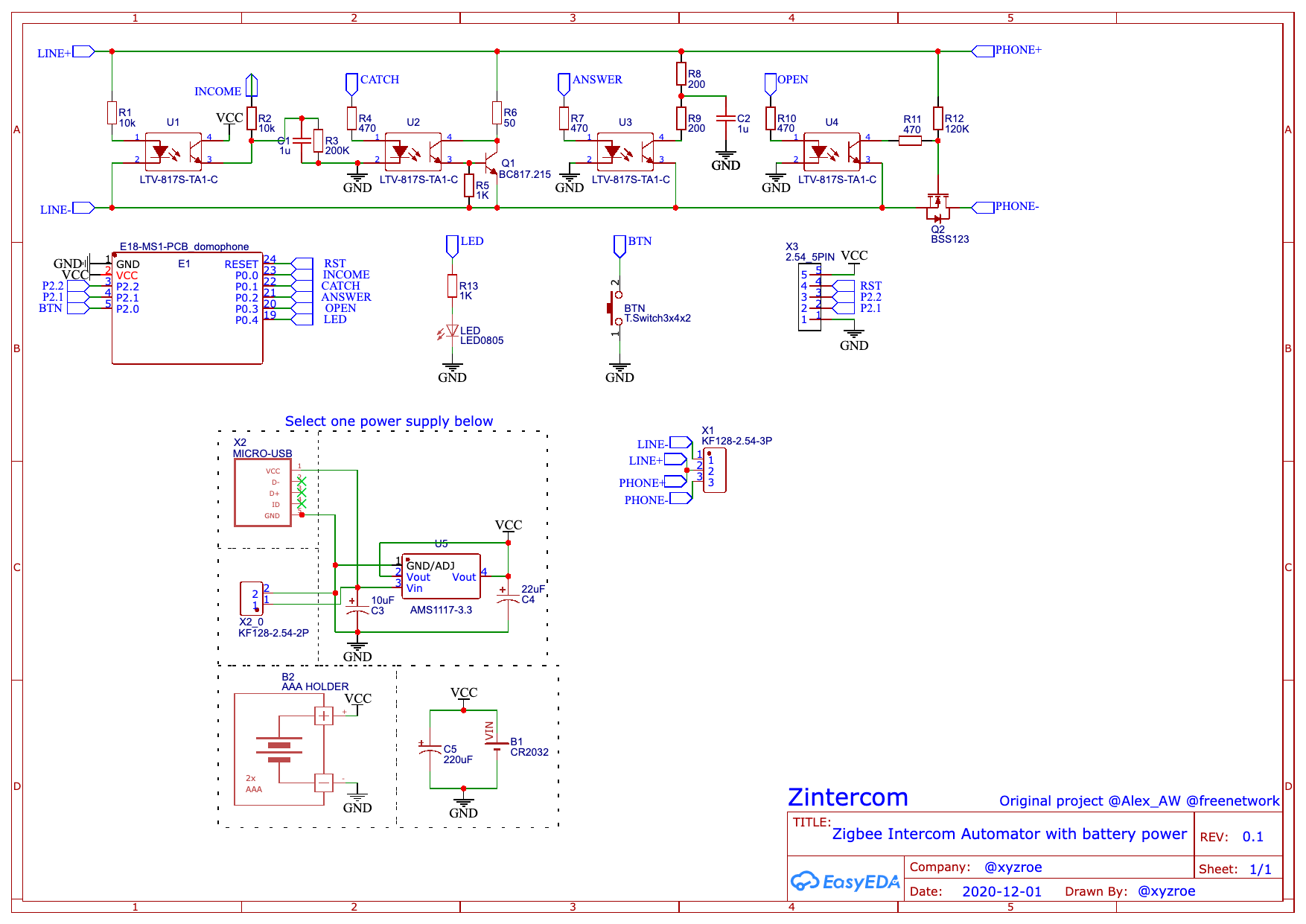

Zintercom/images/Schematic_Zintercom.png
lost c5780a9007 PCB v0.1
updated scheme (BTN pin)
added Gerber and BOM files
updated images
2021-01-15 18:46:26 +02:00

173 KiB
1754x1241px
Raw History

/rad/Zintercom/raw/commit/c5780a90072681e069552aa4da5222cbf8688a6d/images/Schematic_Zintercom.png
