Zintercom

Zigbee Intercom Automator

How to join

Reset to FN by reboot device 5 times with interval less than 10 seconds.
Reset to FN by press and hold BTN for 5 seconds.

LED will flash during reset.

How to add device into zigbe2mqtt

Use external converters feature

Converter file located here

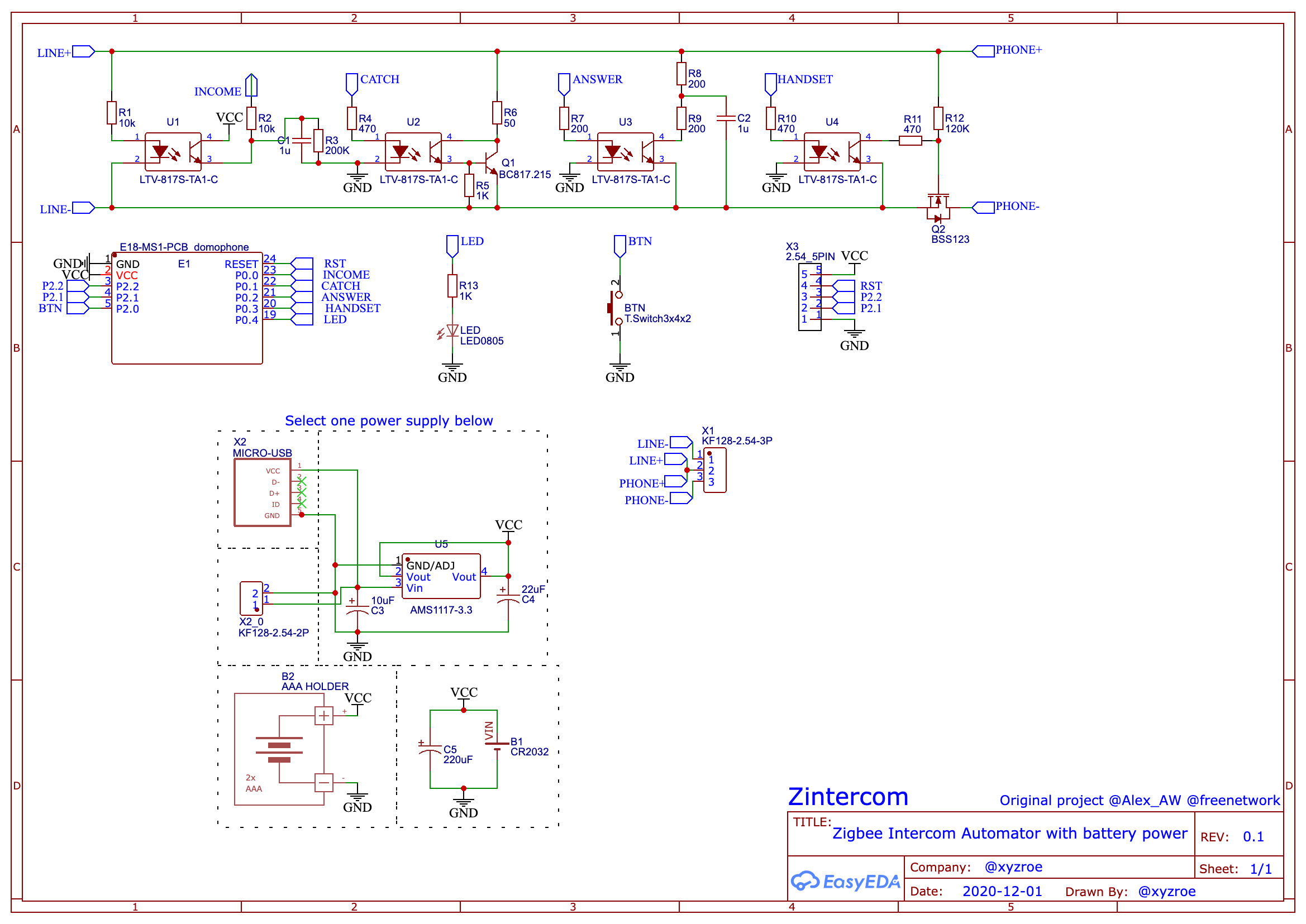

Schematic

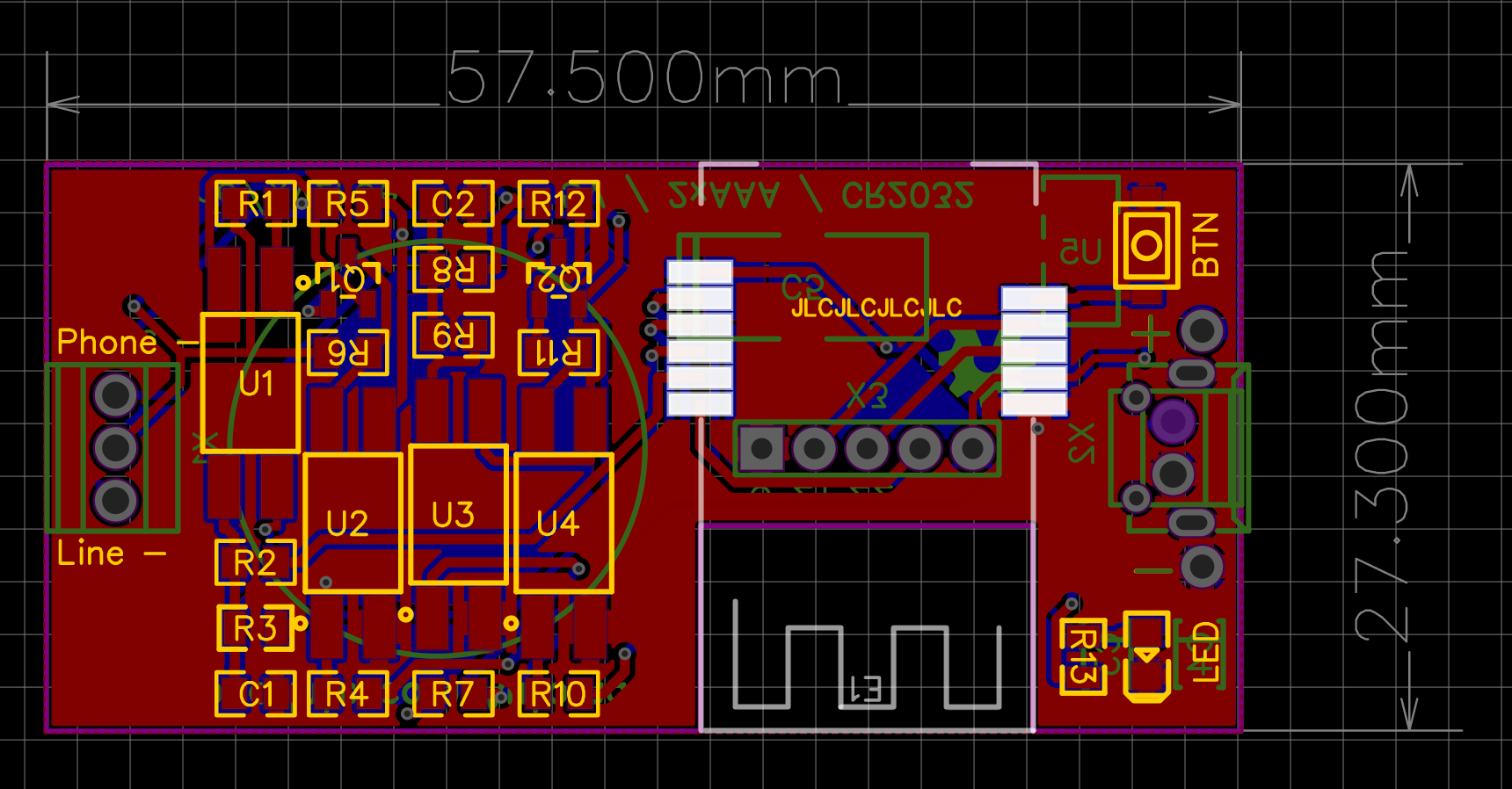

PCB size

57.5mm x 27.3mm

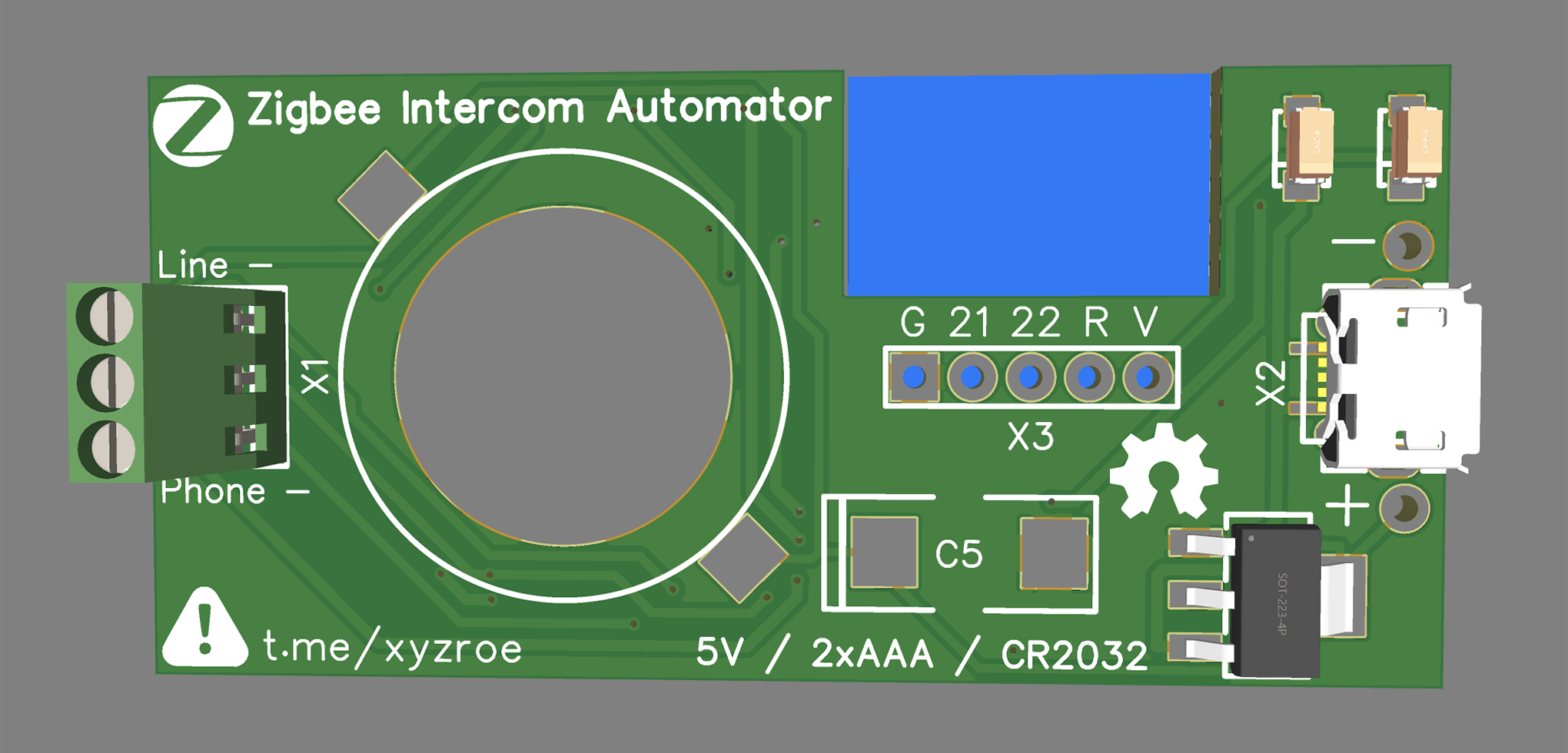

DC Power

Support router and end device modes.
Install E18-MS1PA1, E18-MS1PA2 or E18-MS1-PCB.

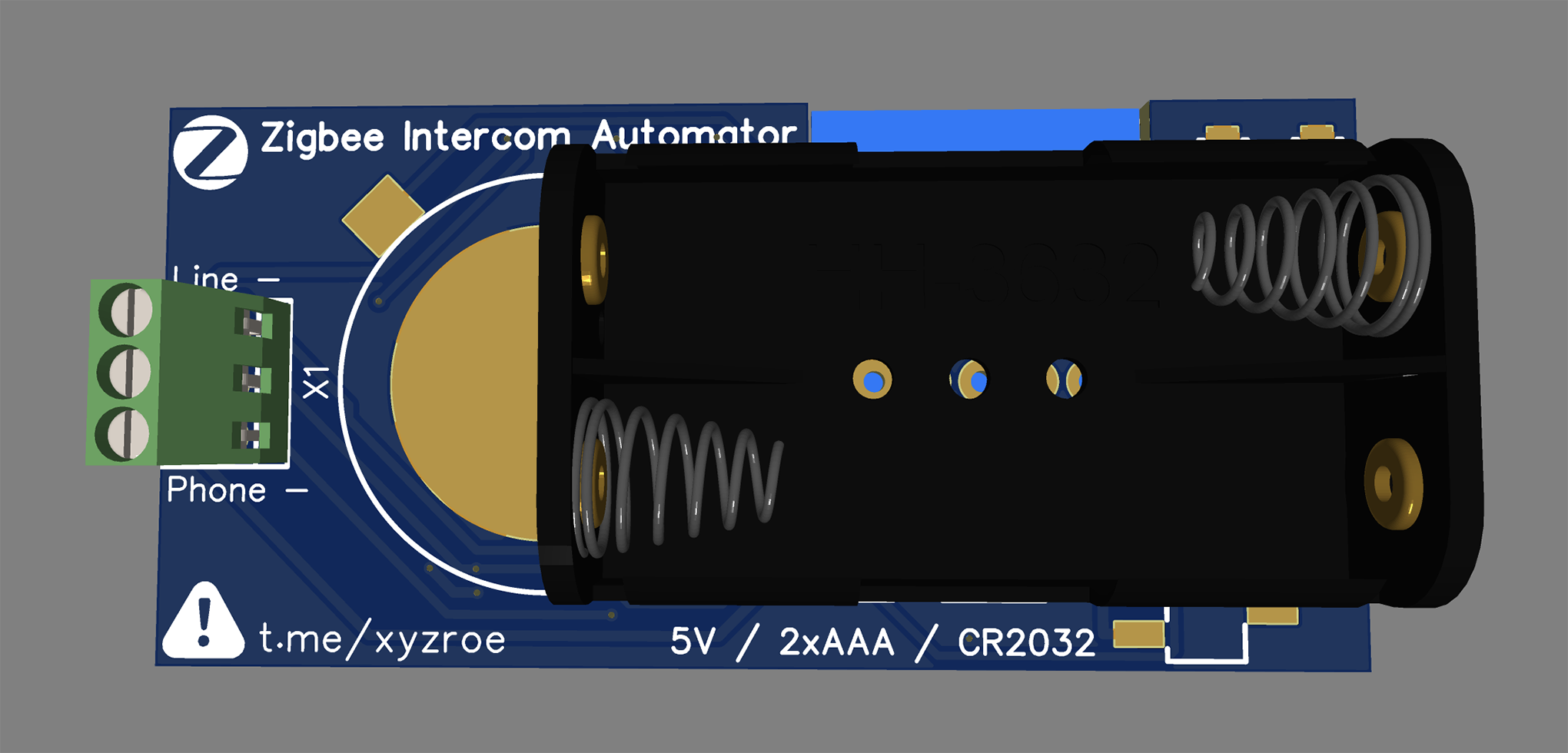

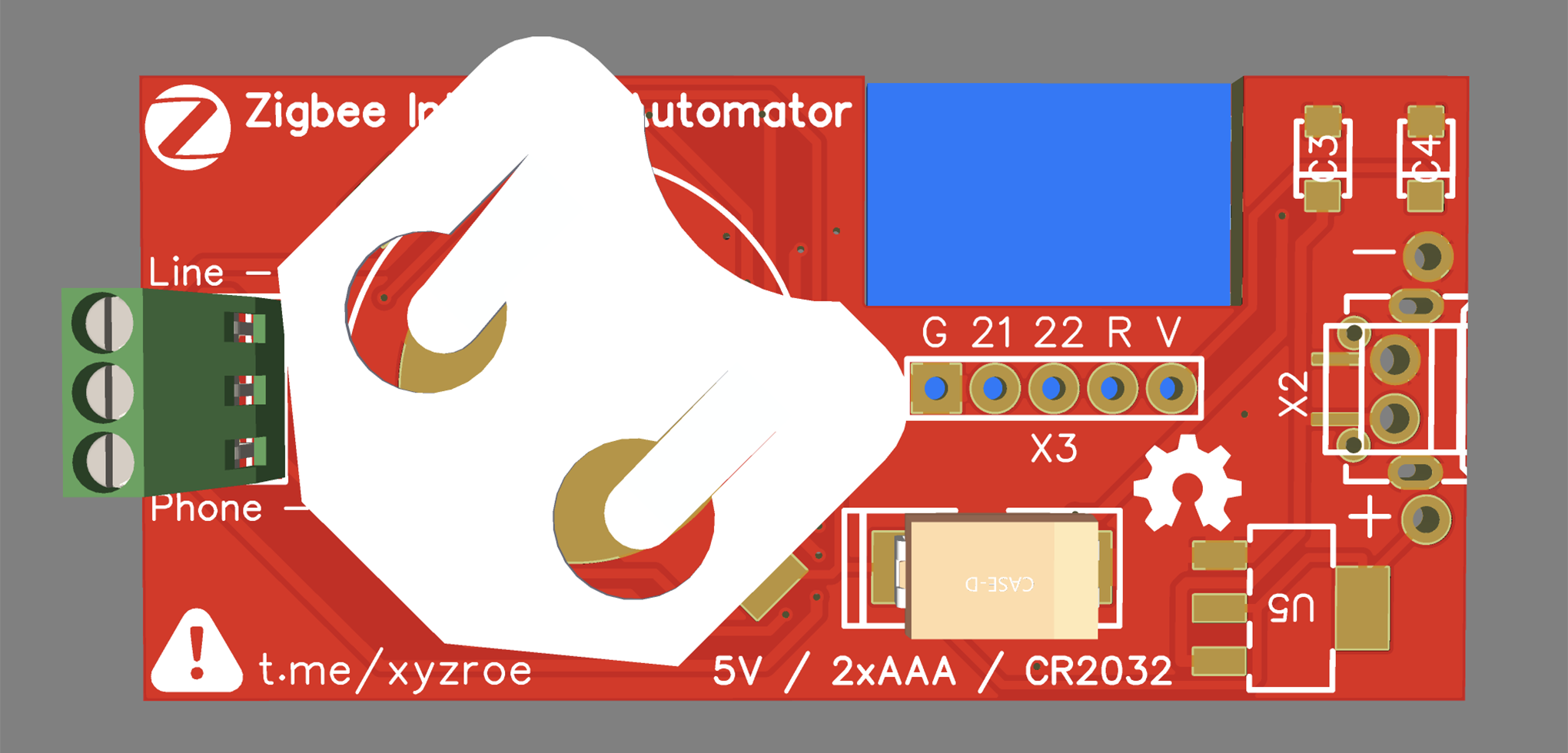

Battery Power

Support only end device mode.
Install E18-MS1-PCB only!
