Zintercom
Zigbee Intercom Automator
This device is designed to control the matrix intercom using Zigbee
Using zigbee2mqtt you can:
- Receive notification when the intercom rings. (also support direct bind)
- Mute the sound on the intercom handset.
- Automatically or manually open the door or hang up when the intercom rings.
There are 4 work modes:
Never - ordinary work mode, use handset to control
Once - one time open door when intercom rings
Always - open door when intercom rings
Drop - hangs up all intercom rings, right after start
You can change the operating mode with z2m or by pressing the button.
After pressing the button, the LED will flash.
The number of flashes indicates the current operating mode.
How to join
Reset to FN by reboot device 5 times with interval less than 10 seconds.
Reset to FN by press and hold BTN for 5 seconds.
LED will flash during reset.

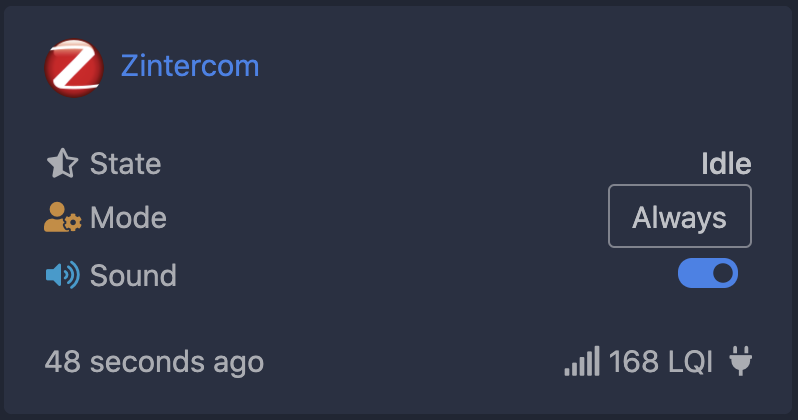

How to add device into zigbe2mqtt
Use external converters feature
Converter file located here

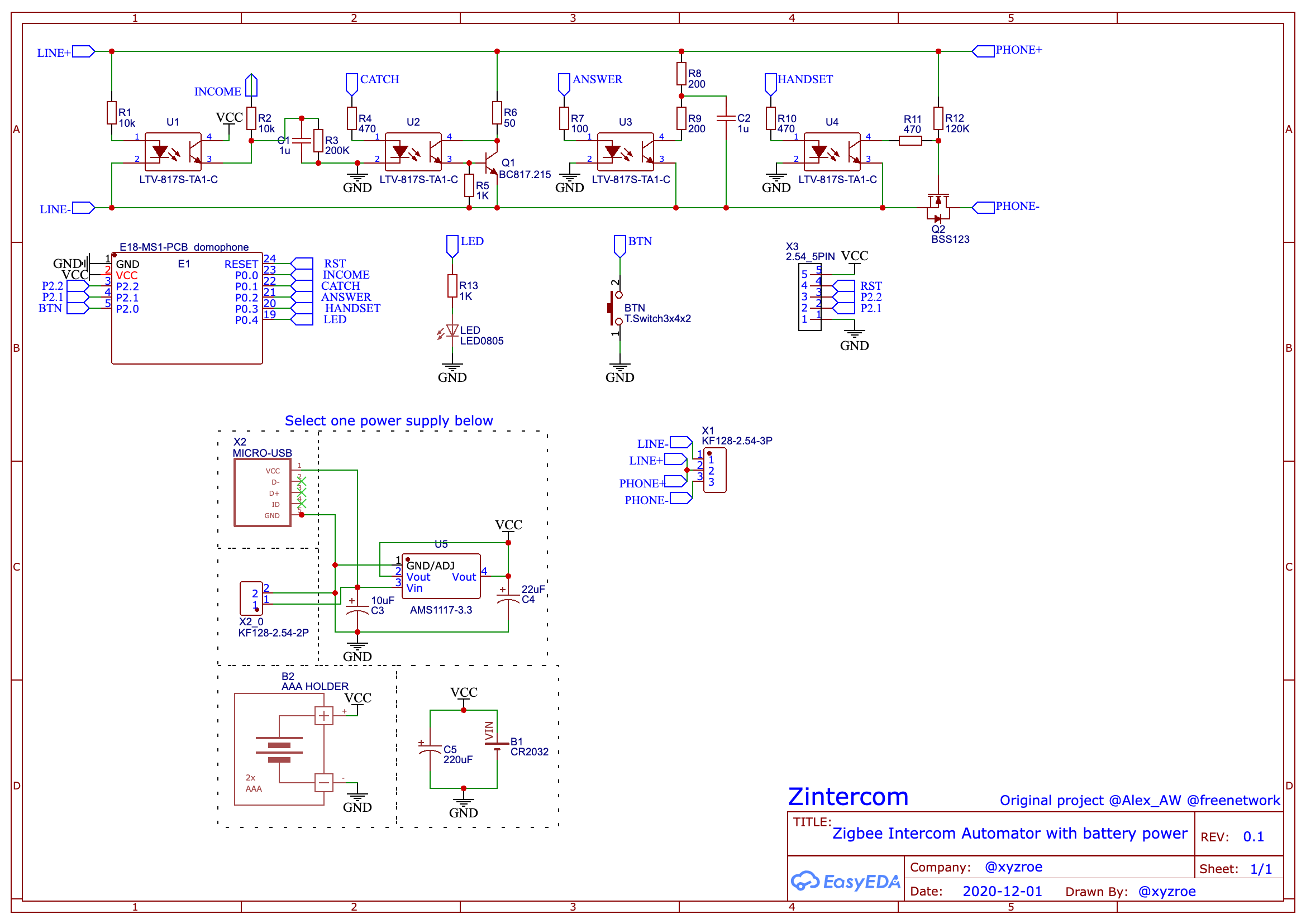

Schematic
PCB size
57.5mm x 27.3mm

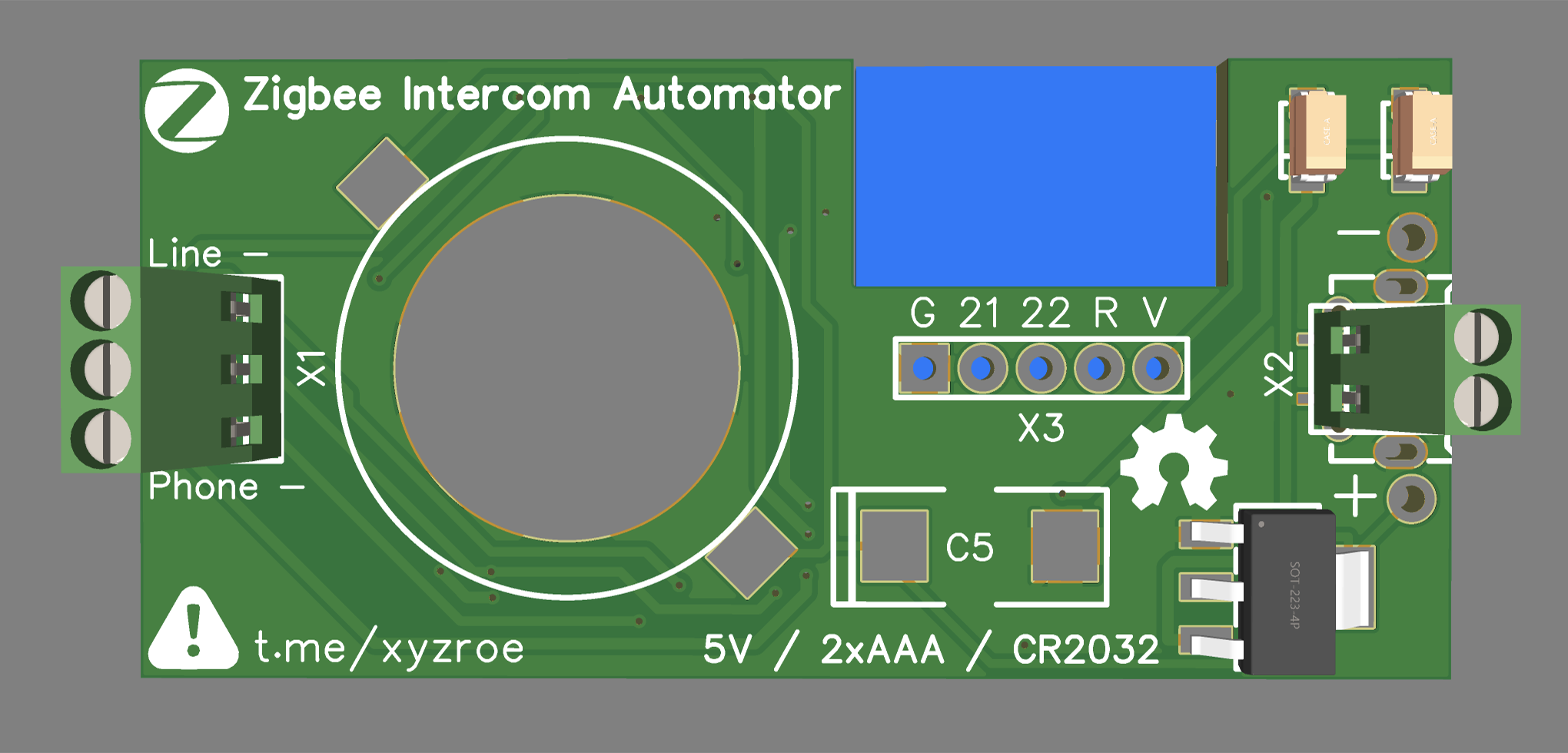

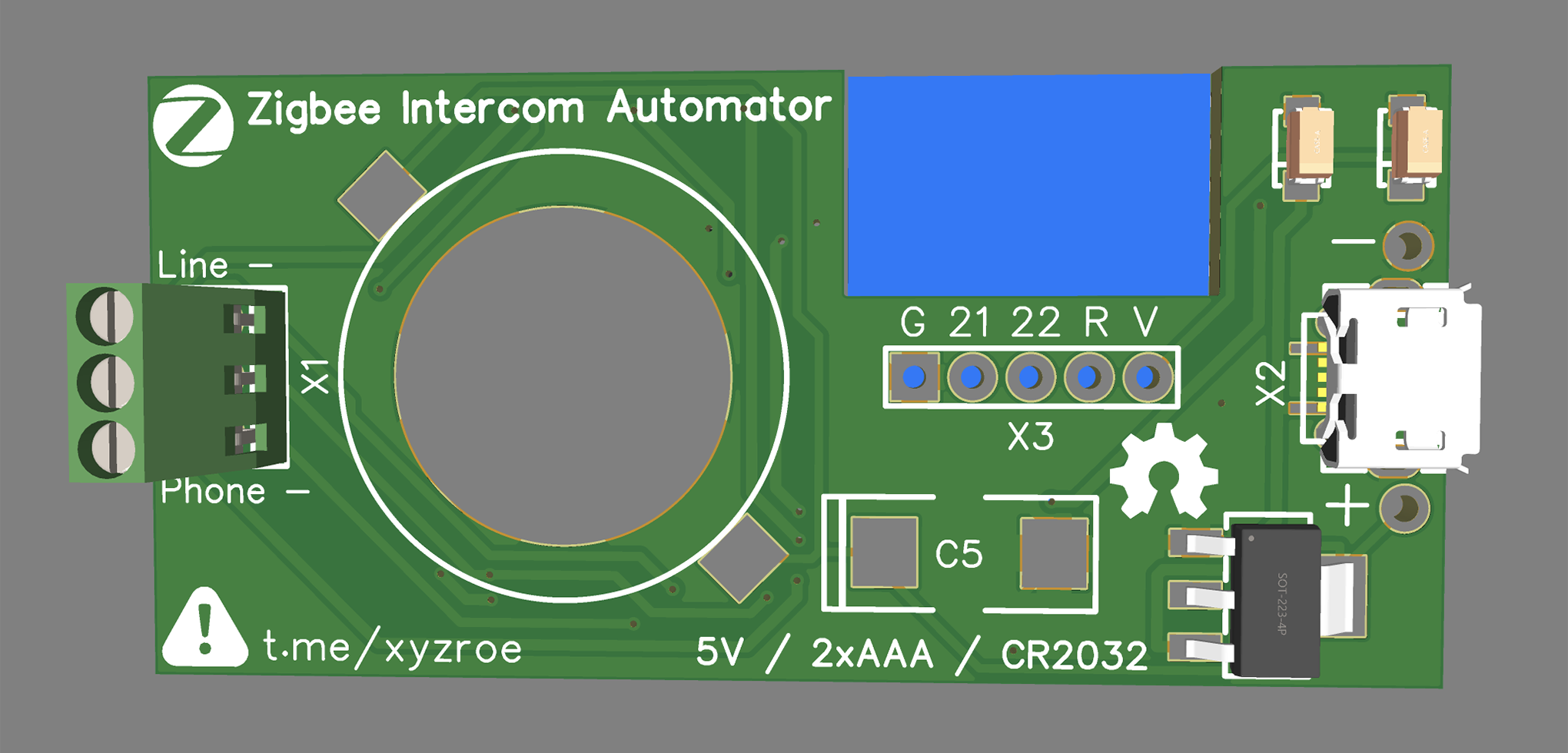

DC Power
Support router and end device modes.
Install E18-MS1PA1, E18-MS1PA2 or E18-MS1-PCB.

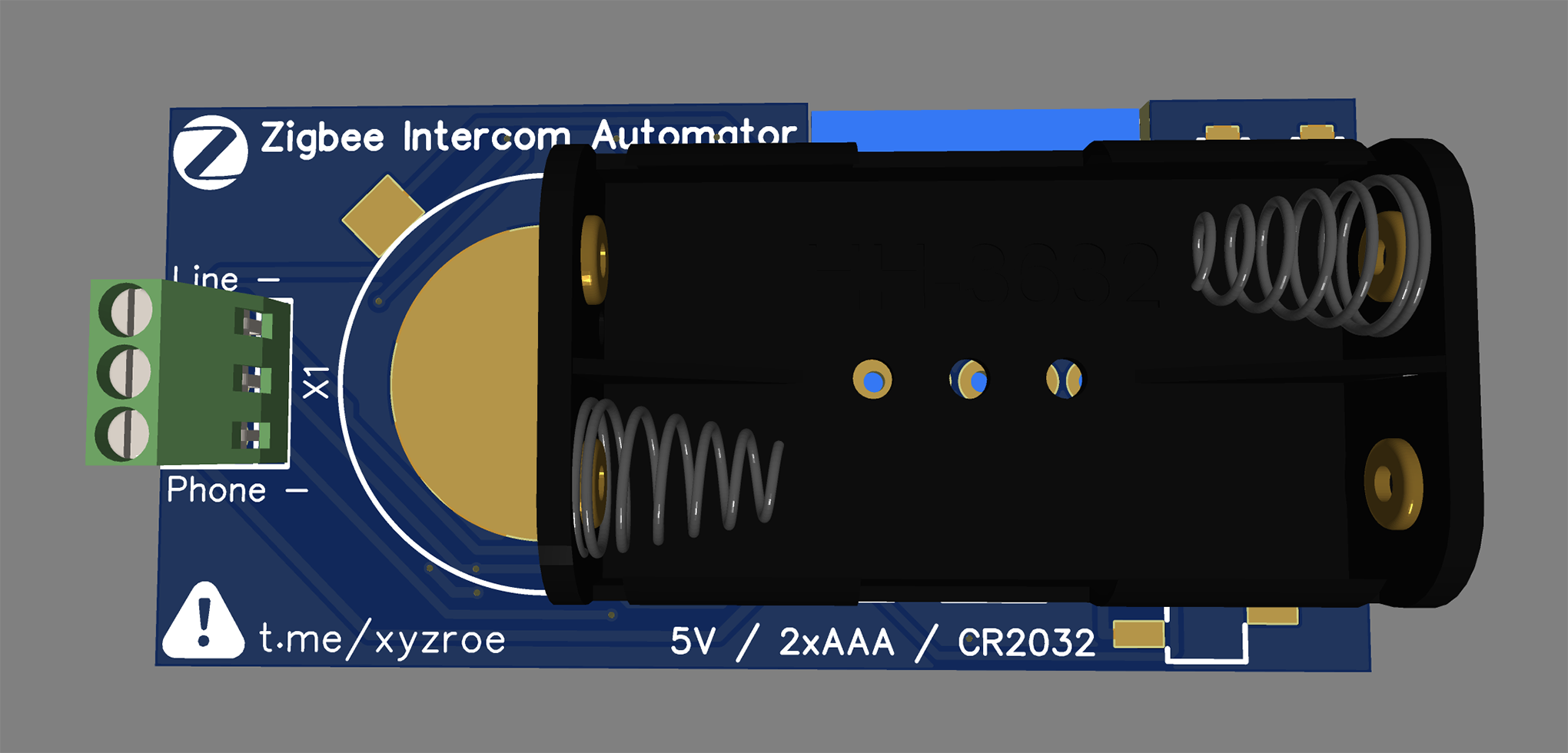

Battery Power
Support only end device mode.
Install E18-MS1-PCB only!
